Brake Plate Casting

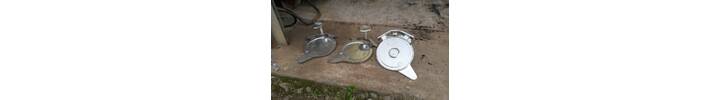

Just 3 brake plate castings were required by the customers casting, so the existing casting was used as the pattern to produce them.

The moulding, casting and fettling was all done at Quantock Patterns with our in house facilities.
